Vrouwelijke aansluitbare terminal blok aansluiting 3,5 mm pitch 300V 8A 2-22 polen PA66 M2 schroef

Vrouwelijke aansluitbare terminal blok aansluiting 3,5 mm pitch 300V 8A 2-22 polen PA66 M2 schroef

  • Markeren

    300 V aansluitbaar eindblok

    ,

    2-22 Palen Plug-in terminalblok

    ,

    8A Plug-in terminalblok

  • Color
    Green
  • Type
    Female part
  • Pitch
    3.5mm
  • Voltage
    300V
  • Current
    8A
  • Wire Range
    16-30 AWG
  • Screw
    M2
  • Plastic
    PA66
  • Stripping Length
    7mm
  • Clamp Cage
    Brass
  • Place of Origin
    China
  • Merknaam
    SCED
  • Certificering
    CE,UL
  • Model Number
    TP381P-20
  • Minimum Order Quantity
    1000 Piece/Pieces
  • Prijs
    USD 0.051-0.12 per pole
  • Packaging Details
    Standard export packing carton, or according to customers demand.
  • Delivery Time
    5-20 Working Days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000000 Pole/Poles per Month

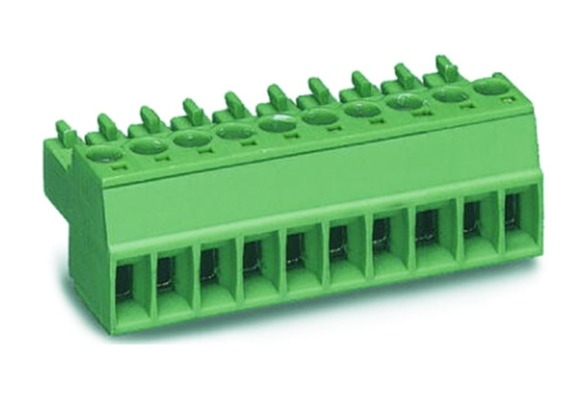

Vrouwelijke aansluitbare terminal blok aansluiting 3,5 mm pitch 300V 8A 2-22 polen PA66 M2 schroef

Vrouwelijk aansluitbaar terminalblok 3,5 mm pitch 300V 8A 2-22 polen PA66 M2 schroef



Gedetailleerd productBeschrijving:



Plug, vrouwelijke stopcontact, pitch: 3,50 mm, 300V 8A, 2P-22P, aansluitbare terminalblokken, aansluitbare terminalblokken



Niveaus: ■Een niveau; □Dubbel niveau; □Drievoudig niveau



Deze vrouwelijke stekker past bij mannelijke stopcontacten van de serie:TP381H-20, TP381H-20V, TP381H-22, TP381H-22V



Standaardkleur: Groen. Andere kleuren zijn ook beschikbaar, zie hieronder Hoe bestellen en selecteer de gewenste kleur.



Hoe bestellen:



Vrouwelijke aansluitbare terminal blok aansluiting 3,5 mm pitch 300V 8A 2-22 polen PA66 M2 schroef 0

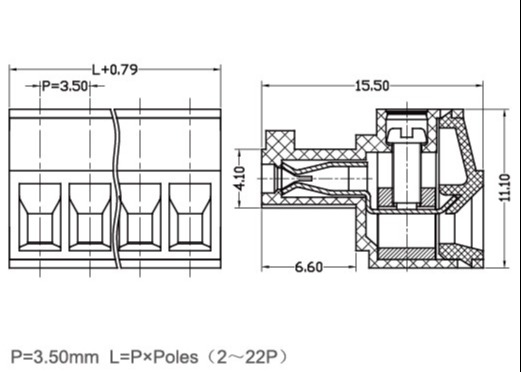

Parameter en tekeningSpecificaties:

UL Technische gegevens B. C D
Nominale spanning/stroom V/A 300 / 8
Draadbereik AWG 16 tot 30
Technische gegevens van de IEC
Overspanningscategorie
Besmettingsklasse 3 2 2
Nominale spanning/stroom V/A 160 / 8 160 / 8 320 / 8
Nominale overspanning KV 2.5 2.5 2.5
Nominale aansluitcapaciteit mm2 1.5
Materiaal
Isolatie materiaal / ontvlambaarheidsklasse PA66 / UL94, V-0
Klemkooi / bekleding Messing/vernikeld
Terminalen / plating Fosforbronzen / tinplaat
Schroef / bekleding Stalen / zinkgeplatte
Andere gegevens
Aftreklengte mm 7
Schroef / koppel / lbf.in M2 / 2-2.2



Concurrentievoordeel:



  1. OEM- en ODM-service beschikbaar
  2. Meer dan 1000 modellen
  3. Hoge kwaliteit en concurrerende prijs
  4. Goede service en snelle reactie

Toepassingen:



Normaal gesproken kunnen onze producten worden gebruikt voor:



1Communicatie, stroomvoorziening, industriële controle, medische apparatuur

2Veiligheid, PCB, Automatisering, Militair, Spoorwegvervoer

3Server site, schakelaar, elektrische verlichting, frequentiekonverter etc.



Vrouwelijke aansluitbare terminal blok aansluiting 3,5 mm pitch 300V 8A 2-22 polen PA66 M2 schroef 1
